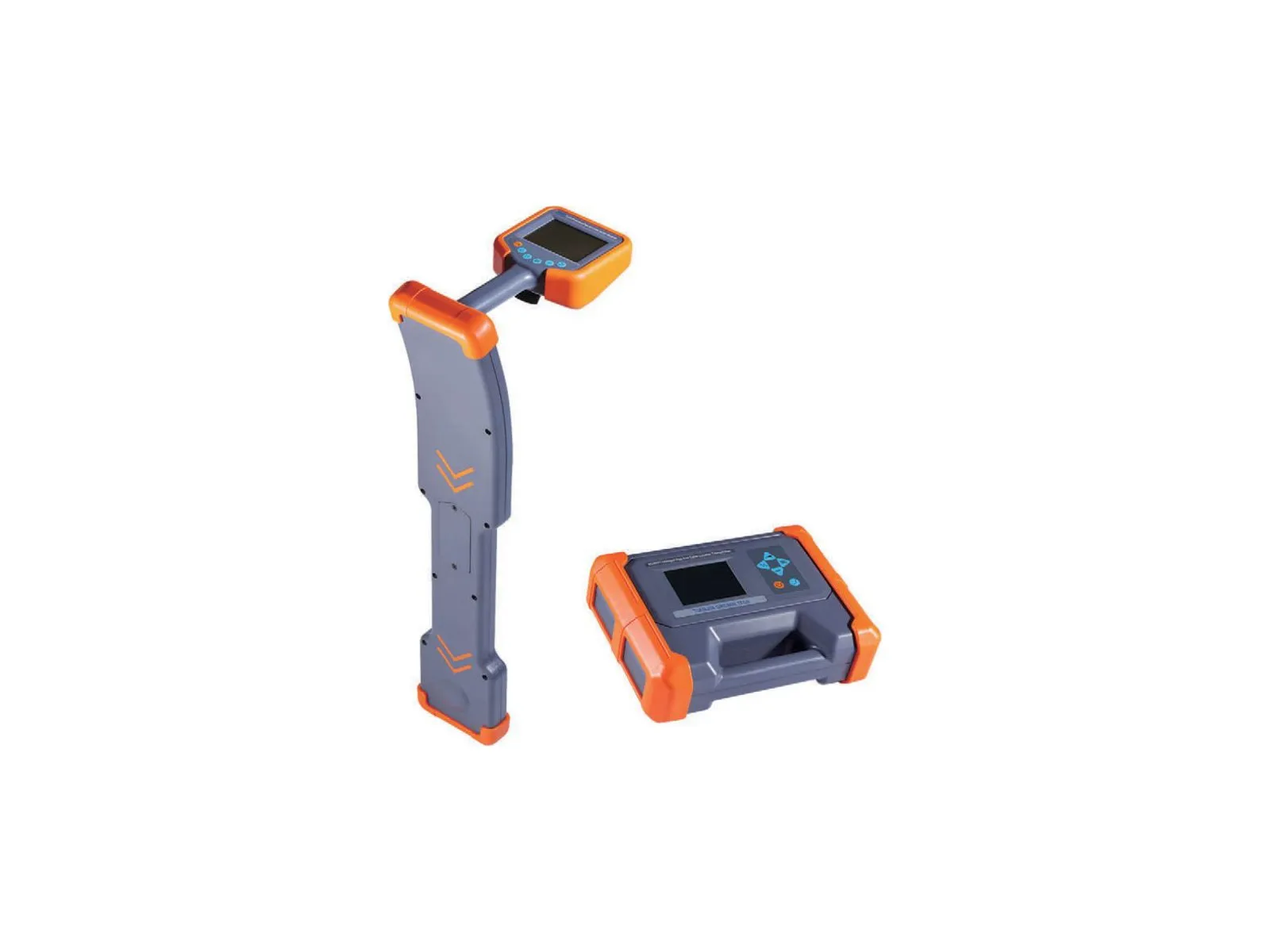

Locator receiver and transmitter.
Step 4 of 4: Route tracing
CRT-015 Cable route tracer
Transmitter and receiver that follow a buried cable from the surface, so the measured distance is walked along the real route.
- Set
- Transmitter and receiver
- Finds
- The route of a buried cable
- Used
- Before pinpointing
- Works with
- TDR-901 and AP-01
Where it fits
The CRT-015 is step 4. It puts the measured distance on the right street.
-
Step 1: Pre-locate
-
Step 2: Condition
-
Step 3: Pinpoint
-
Step 4: Trace route
You are here- CRT-015 Cable route tracer
Overview
A reflectometer measures distance along the cable, not along the street. Cables bend, cross roads and change sides, so a fault 1,284 m from the cable end can be well away from where a tape along the kerb would put it.
The CRT-015 transmitter puts a signal on the cable. The receiver picks it up at the surface, and the crew follows it and marks the route. The pinpointer is then walked along that line instead of across the whole street.
Works with
The CRT-015 turns the TDR-901’s distance into a line on the ground, and the AP-01 then walks that line.
Price a CRT-015 with your set.
Tell us the cable lengths you trace, and whether you need the TDR-901 and AP-01 with it.
