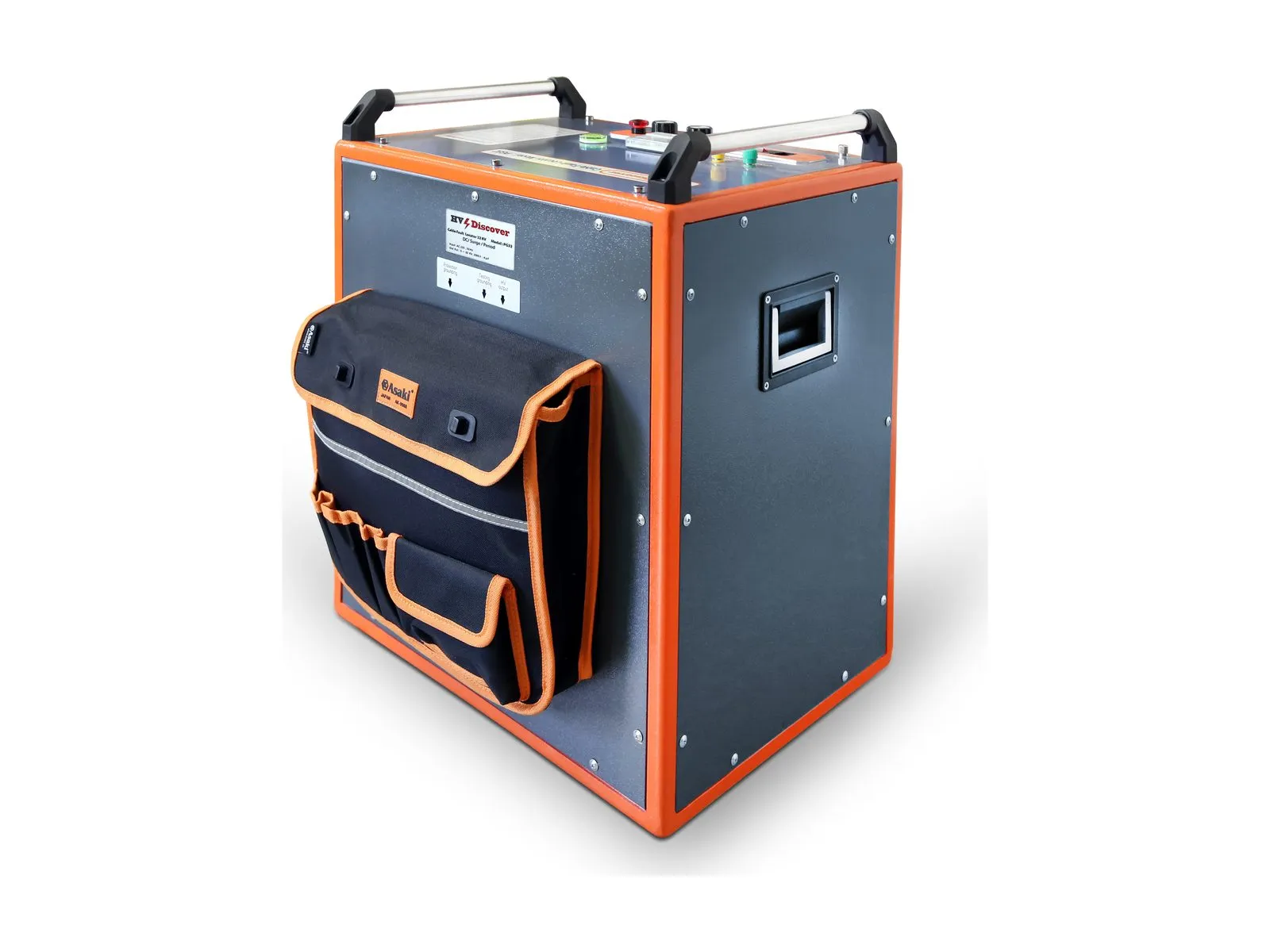

Three-quarter view with the accessory pouch fitted.
Step 2 of 4: Surge & conditioning
PG-32 Surge generator, 30 kV
Portable surge and DC set, 0 to 30 kV and 1,800 J, that breaks down cable faults so they can be pre-located and pinpointed.
- DC output
- 0–30kV
- Surge energy
- 1,800J
- Discharge period
- 5s
- Weight
- 45kg
Datasheet (PDF) 2 pages, English
Where it fits
The PG-32 is step 2. It prepares the fault for the reflectometer before it and the pinpointer after it.
-
Step 1: Pre-locate
-
Step 2: Condition
You are here- PG-10 Surge generator, 10 kV
- PG-32 Surge generator, 30 kV
-
Step 3: Pinpoint
-
Step 4: Trace route
Overview
The PG-32 charges a capacitor and discharges it into the faulty cable. The discharge breaks down a high-resistance or intermittent fault, so the reflectometer can see it and the pinpointer can hear it.
Output is set from 0 to 30 kV DC, with 1,800 J of surge energy. One selector on the panel chooses DC, single shot or period. Single shots suit pre-location; in period mode the set discharges by itself every 5 seconds while the crew walks the route with the pinpointer. Through an ARM filter it feeds the TDR-901 for arc reflection.
The steel case weighs 45 kg and is rated IP43. It has two top handles, cooling fans, a bubble level, a pointer kV meter and an internal 800 W isolation transformer. The unit is rated AC 220 V, 50 Hz, and it can be installed in a vehicle.
Specifications
Values from the product datasheet. Panel details and the discharge period as shown on the unit.
Output and methods
| DC output voltage | 0 to 30 kV |
|---|---|
| Surge energy, nominal | 1,800 J |
| Operating modes | DC, single shot, period |
| Discharge period | Automatic, every 5 s, in period mode |
| Test methods | DC test, surge discharge, arc reflection (ARM) |
| Isolation transformer | Internal, 800 W |
Indication and protection
| Output voltage display | Pointer kV meter; LED scale around the voltage knob, 0 to 30 kV |
|---|---|
| Panel indicators | Closed and Separated beside the HV switch; Over-V and Under-V beside the mains inlet, as labelled |
| Level indicator | Bubble level on the panel |
Connections
| Earth | Ground and auxiliary ground terminals |
|---|---|
| Reflectometer | TDR-901 or a higher model |
| ARM method | Through an ARM filter |
Power and environment
| Input supply | AC 220 V, 50 Hz (as rated on the unit) |
|---|---|
| Operating temperature | −10 to 40 °C |
| Relative humidity | 5 to 80 % |
| Protection class | IP43 |
Mechanical
| Dimensions (L × W × H) | 540 × 400 × 500 mm |
|---|---|
| Weight | 45 kg |
| Case | Steel, powder-coated: orange frame, grey panels |
| Cooling | Fans behind grilles in the side panels |
| Handles | Two carrying handles on top, one recessed at the side |
| Transport | Can be installed in a vehicle |
Service
| Calibration | Approval and certificate supplied |
|---|

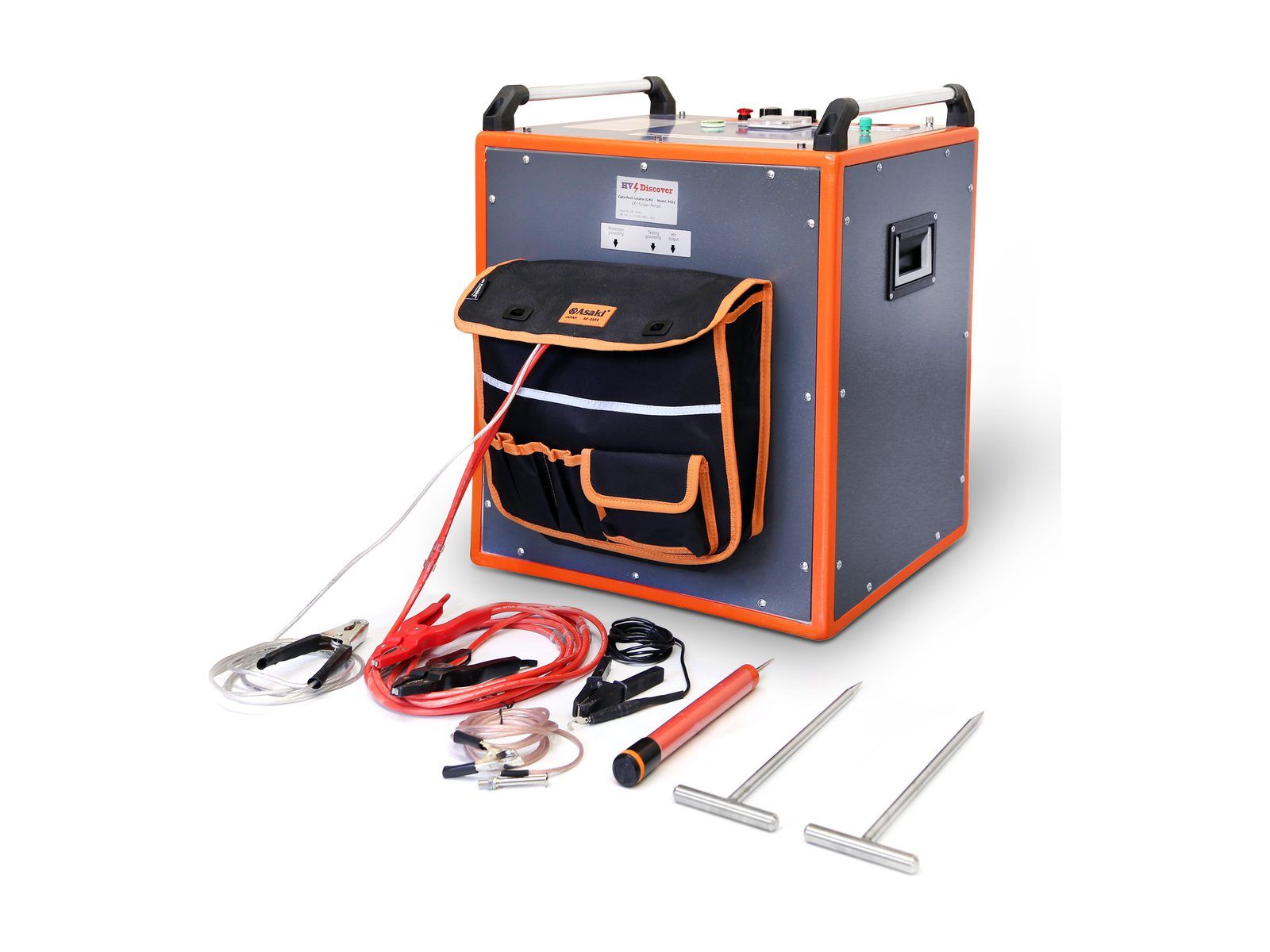

In the box
- Protection earth rod 1
- Cable clamps 2
- Discharge probe with earth cable 1
- Output cable 5 m
- Protection earth cable 5 m
- Power cable 1.5 m
- Accessory bag, attached to the case 1
Works with
Through the ARM Filter the PG-32 feeds the TDR-901 for arc reflection, and its discharges are what the AP-01 listens for.
Step 1, pre-locate
ARM Filter
Arc reflection filter
- Method
- Arc reflection (ARM)
- Works with
- TDR-901, PG-32
